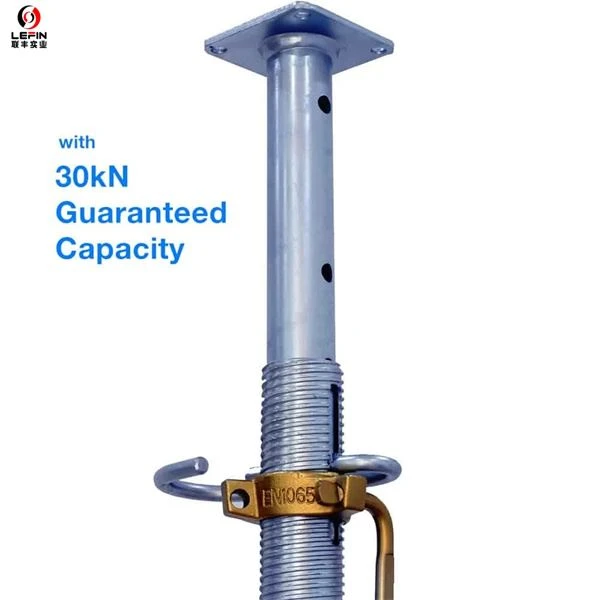

EN1065 B40 Shoring Prop
——————————————————————————————————————
LEFIN akseswar lou yo koresponn ak Nòm Ewopeyen an EN1065. Pou satisfè nenpòt demann, comipont pwodui twa klas diferan, tou depann de kapasite chaj:
Klas B, ki pi lejè a, ak kapasite chaj varyab
Klas D, ak 20 kN nan kapasite chaj
Klas E, pi lou a, ak 30 kN nan kapasite chaj
Dimansyon ki disponib
| Cod. | wotè min/m | wotè max/m | peso/kg |
|---|---|---|---|
| B25 | 1,55 | 2,50 | 13,00 |
| B25E | 1,55 | 2,50 | 13,20 |
| B30 | 1,81 | 3,00 | 14,30 |
| B30E | 1,81 | 3,00 | 15,00 |
| B35 | 2,11 | 3,50 | 15,20 |
| B35E | 2,11 | 3,50 | 16,20 |
| B40 | 2,31 | 4,00 | 17,60 |
| B40E | 2,31 | 4,00 | 19,00 |
| B50E | 3,00 | 5,00 | 24,30 |
Tablo chaj yo admèt an KN - 1 KN=102 kg
| H (m) | B25/B25E | B30/B30E | B35/B35E | B40/B40E | B50E |
|---|---|---|---|---|---|
| 1,50 | 30,00 | ||||
| 1,60 | 30,00 | ||||
| 1,70 | 30,00 | ||||
| 1,80 | 30,00 | 30,00 | |||
| 1,90 | 20,70 | 30,00 | |||
| 2,00 | 25,00 | 30,00 | 30,00 | ||
| 2,10 | 22,68 | 27,21 | 30,00 | ||
| 2,20 | 20,66 | 24,79 | 28,93 | ||
| 2,30 | 18,90 | 22,68 | 26,47 | 30,00 | |
| 2,40 | 17,36 | 20,83 | 24,31 | 27,78 | |
| 2,50 | 16,00 | 19,20 | 22,40 | 25,60 | |
| 2,60 | 17,75 | 20,71 | 23,67 | ||
| 2,70 | 16,46 | 19,20 | 21,95 | ||
| 2,80 | 15,31 | 17,86 | 20,41 | ||
| 2,90 | 14,27 | 16,55 | 19,02 | ||
| 3,00 | 13,33 | 15,56 | 17,78 | 22,20 | |
| 3,10 | 14,57 | 16,65 | 20,80 | ||
| 3,20 | 13,67 | 15,63 | 19,50 | ||
| 3,30 | 12,86 | 14,69 | 18,40 | ||
| 3,40 | 12,11 | 13,84 | 17,30 | ||
| 3,50 | 11,43 | 13,06 | 16,30 | ||
| 3,60 | 12,35 | 15,40 | |||
| 3,70 | 11,69 | 14,60 | |||
| 3,80 | 11,08 | 13,90 | |||
| 3,90 | 10,52 | 13,10 | |||
| 4,00 | 10,00 | 12,50 | |||
| 4,10 | 11,90 | ||||
| 4,20 | 11,30 | ||||
| 4,30 | 10,80 | ||||
| 4,40 | 10,30 | ||||
| 4,50 | 9,90 | ||||
| 4,60 | 9,50 | ||||
| 4,70 | 9,10 | ||||
| 4,80 | 8,70 | ||||
| 4,90 | 8,30 | ||||
| 5,00 | 8,00 |
